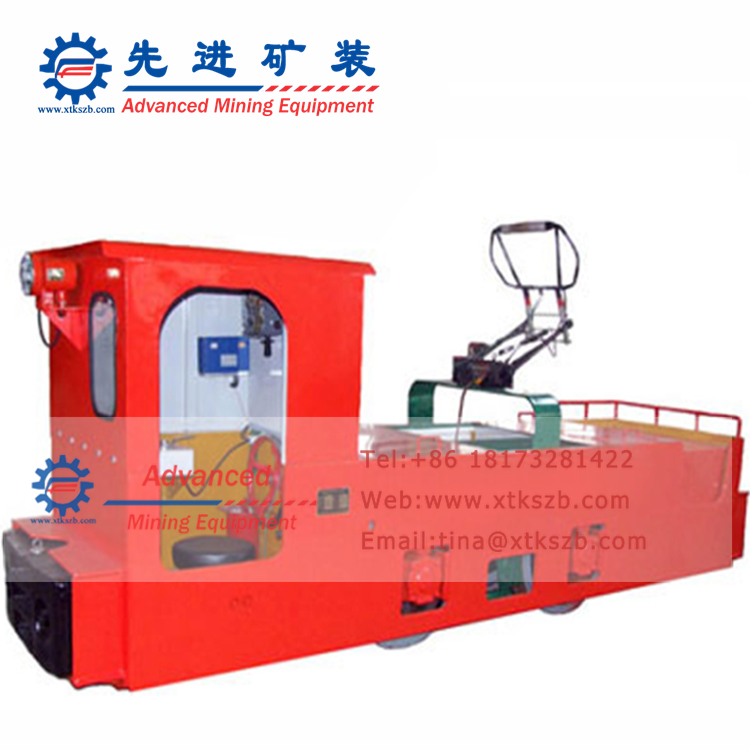

Trolley locomotive:
-
Locomotive
using DC electrical line, DC transformed to three phase AC by computer
traction transformer, the voltage and frequency can be adjusted, which
can drive two AC asynchronous motor, by reduction gear driving axle to
tract locomotive.
-
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
-
Have good sticking and big traction.
-
Reliable AC electrical motor, with wide range of speed regulation.
-
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
-
The
products are suitable for transportation traction on the narrow rail
for the field of coal, metallurgical industry, mining, forest, railway,
road tunnel construction and etc.
-
Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.
10T trolley locomotive Technical Specifications
Model Name
|
CJY10/6, 7, 9G
|
Adhesive Weight
|
10 tons
|
Track Gauge
|
600, 762 or 900mm
|
Traction
|
13.05kN
|
18.93kN
|
Max. Traction
|
24.5kN
|
Speed
|
11km/h
|
10.5 km/h
|
DC Voltage
|
250V
|
550V
|
Power
|
21kW*2
|
30kW*2
|
24kW*2
|
30kW*2
|
Dimensions
|
Length
|
4456mm
|
Width
|
1054, 1212 or 1350mm
|
Height
|
1550mm
|
Wheelbase
|
1100mm
|
1220mm
|
Wheel Diameter
|
Φ680mm
|
Pantograph
|
1800~2200mm
|
Min. Turning Radius
|
7m
|
10m
|
Controller
|
Resistance, IGBT or AC converter
|
Brake Mode
|
Mechanical Brake and Pneumatic Brake
|
